Description

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.

FUNCTIONAL CHARACTERISTICS:

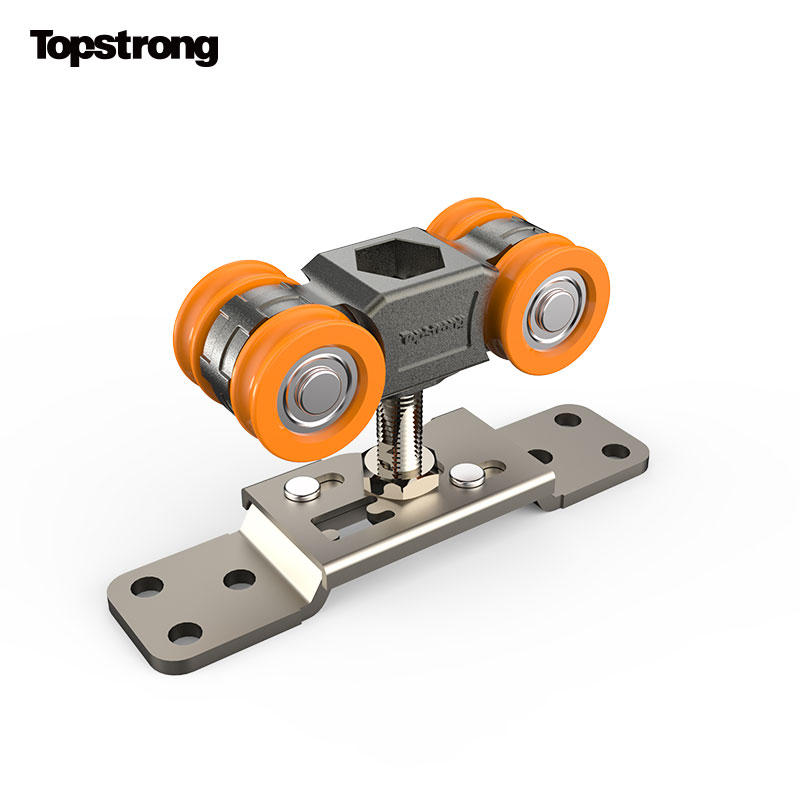

① The upper load-bearing design avoids drilling and slotting on the ground
② High load-bearing, quiet and wear-resistant roller material
③ U-shaped train wheels with high-precision bearings for sliding doors
④ The insert tube is stretched and formed by high-quality steel, which is not easy to deform due to large bearing capacity
⑤ High-precision CNC machining ensures the parallelism and coaxiality of the four wheels of the hanging body, and the force is more uniform

PARAMETER:

Load-bearing range: ≤ 60kg
Applicable door thickness: ≥40mm
Applicable Applicable door width: 650~1200mm
Height adjustment: 0-10mm
Service life: 100000 times

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials

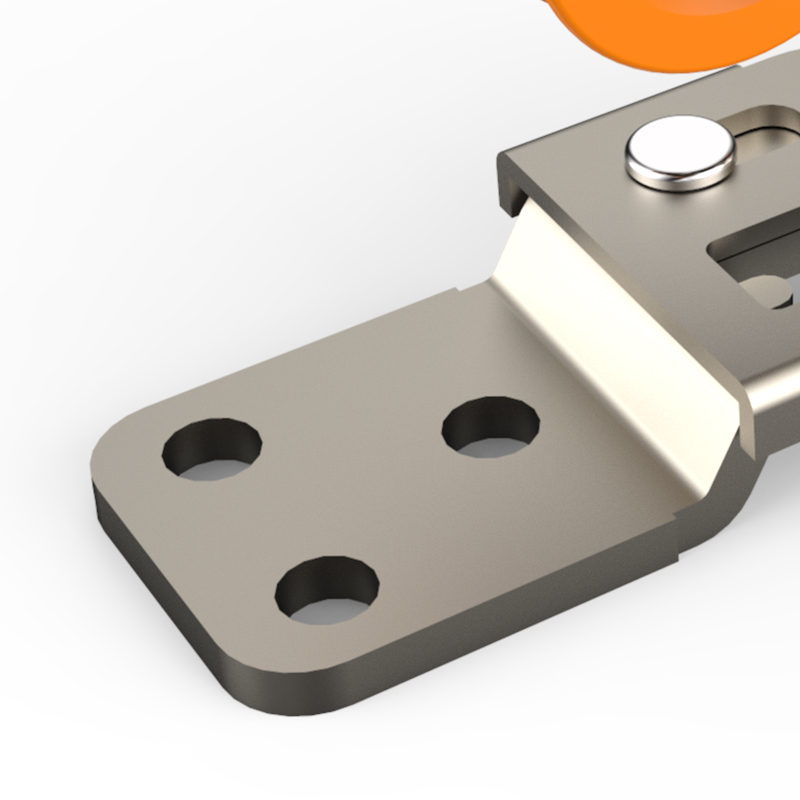

Rack:High quality Steel
Hanging rail:Aluminium alloy

CALCULATION:

Door opening height H
Hanger rail height H1
Door leaf height L
Door leaf Width W
Door hole width inside X
Upper door slot size H2
Lower door slot size H3

Door leaf height:L=H-H1-H2-H3
Effective opening width of door:X=2W-2C
Door leaf overlap width:C ≥ 20mm

Hanger rail height:H1=38.5mm
Upper door slot size:H2=30mm
Lower door slot size:H3=8~10mm
