Description

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
②Suitable for single or multiple aluminum framed glass sliding doors.

FUNCTIONAL CHARACTERISTICS:

① The upper load-bearing design avoids drilling and slotting on the ground
② High load-bearing, quiet and wear-resistant synthetic resin roller material
③ U-shaped train wheels with high-precision bearings for sliding doors

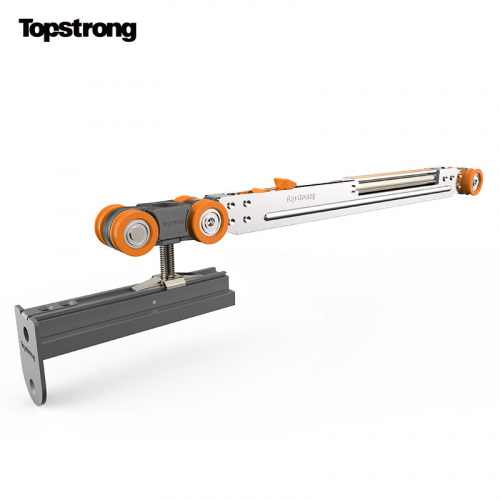

④ Hanging subassembly is formed by high-quality alumininum alloy, which is not easy to deform due to large bearing capacity
⑤ Two doors synchronous real-time linkage
⑥ Convenient to expand the damping, multiple fan linkage function

PARAMETER:

Load-bearing range: ≤ 80kg
Applicable door thickness:≥45mm
Applicable Applicable door width: ≥400mm
Height adjustment: 0-10mm
Service life: 100000 times

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:6061-T6 Aluminium alloy
Hanging rail:Aluminium alloy

CALCULATION:

Door opening height  H
Hanger rail height    H1
Door leaf height     L
Door leaf Width     W
Door hole width inside  X
Upper door slot size   H2
Lower door slot size   H3

Door leaf height:L=H-H1-H2-H3
Effective opening width of door:X=2W-2C
Door leaf overlap width:C=16mm
Hanger rail height:H1=47mm
Upper door slot size:H2=30mm
Lower door slot size:H3=13mm
