Description

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for two linkage wooden sliding door.

FUNCTIONAL CHARACTERISTICS:

① The upper load-bearing design avoids drilling and slotting on the ground

② High load-bearing, quiet and wear-resistant roller material

③ Bevel round shaped wheels with high-precision bearings for sliding doors

④ Long buffer distance, mute, safe, and to prevent the pinch

⑤ Double card groove structure to achieve rapid installation

⑥ Two doors synchronous real-time linkage

⑦ Convenient to expand the damping, multiple fans linkage function

PARAMETER:

Load-bearing range: ≤ 60kg
Applicable door thickness:≥40mm
Applicable Applicable door width:700~1200mm
Height adjustment: 0-10mm
Service life: 100000 times

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:high quality Steel
Hanging rail:Aluminium alloy

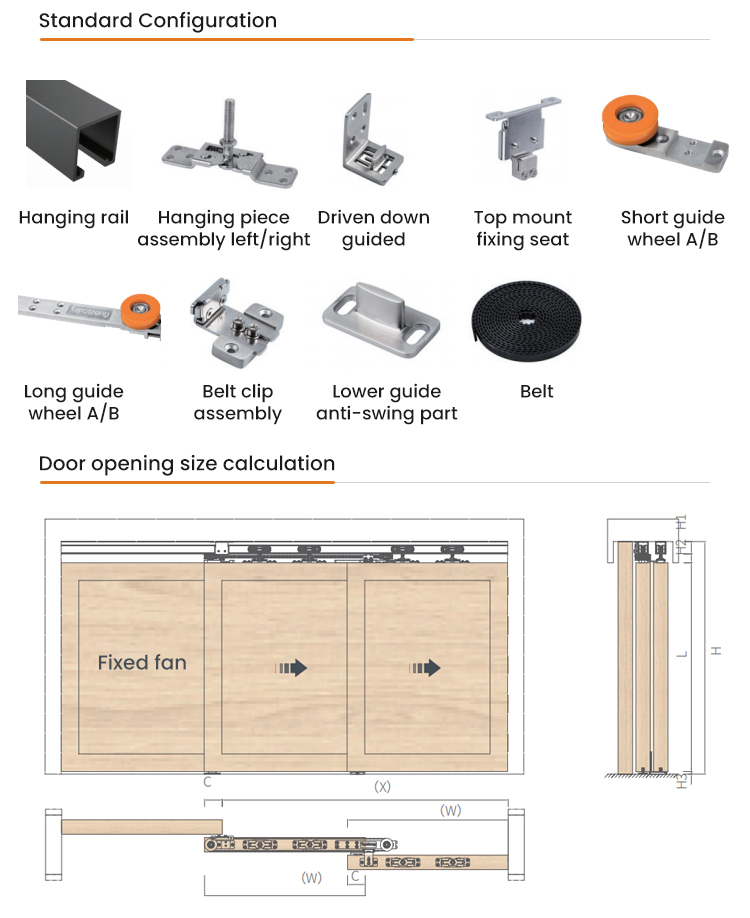

CALCULATION:

Door opening height  H
Hanger rail height    H1
Door leaf height     L
Door leaf Width     W
Door hole width inside  X
Upper door slot size   H2
Lower door slot size   H3

Door leaf height:L=H-H1-H2-H3
Effective opening width of door:X=2W-2C

Door leaf overlap width:C≥ 55mm
Hanger rail height:H1=38.5mm
Upper door slot size:H2=30mm
Lower door slot size:H3=12mm
