Description

Main function:

  • FPC Semiconductor fingerprint sensor
  • Electronic anti-theft lock body
  • Custom security chip
  • Safety appearance design
  • Anti-peeping password design
  • Duplex bearing design
  • 4 unlock ways
  • Dynamic mencrypt card

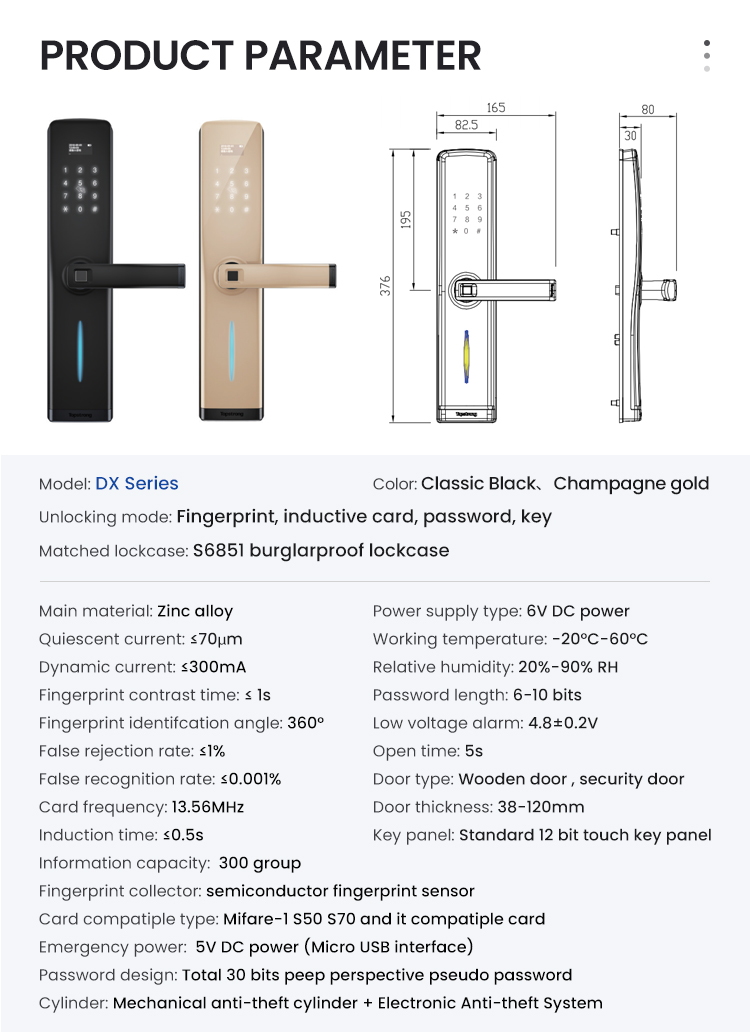

Mode: DX

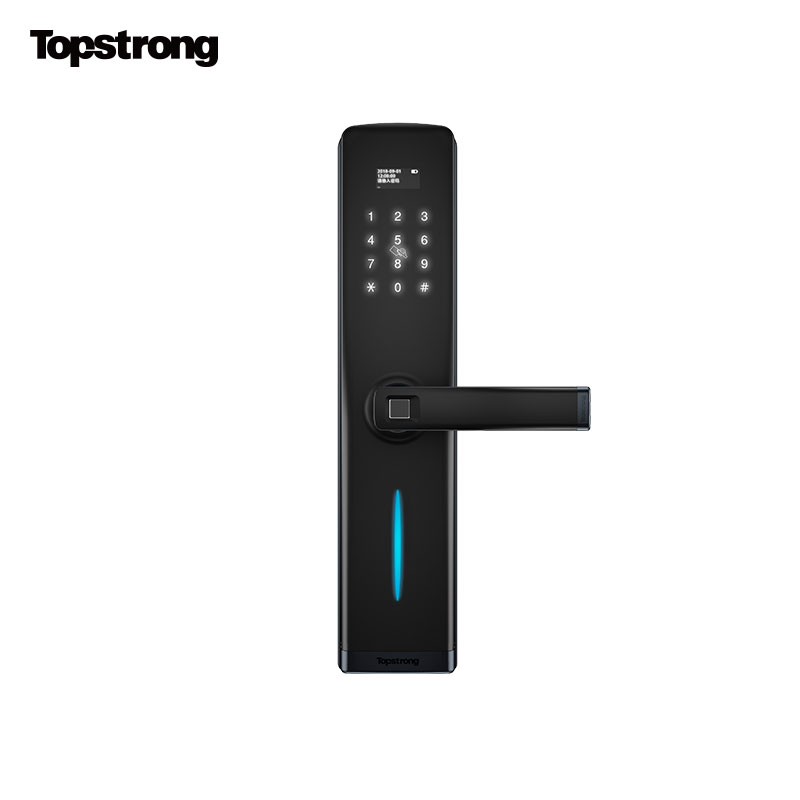

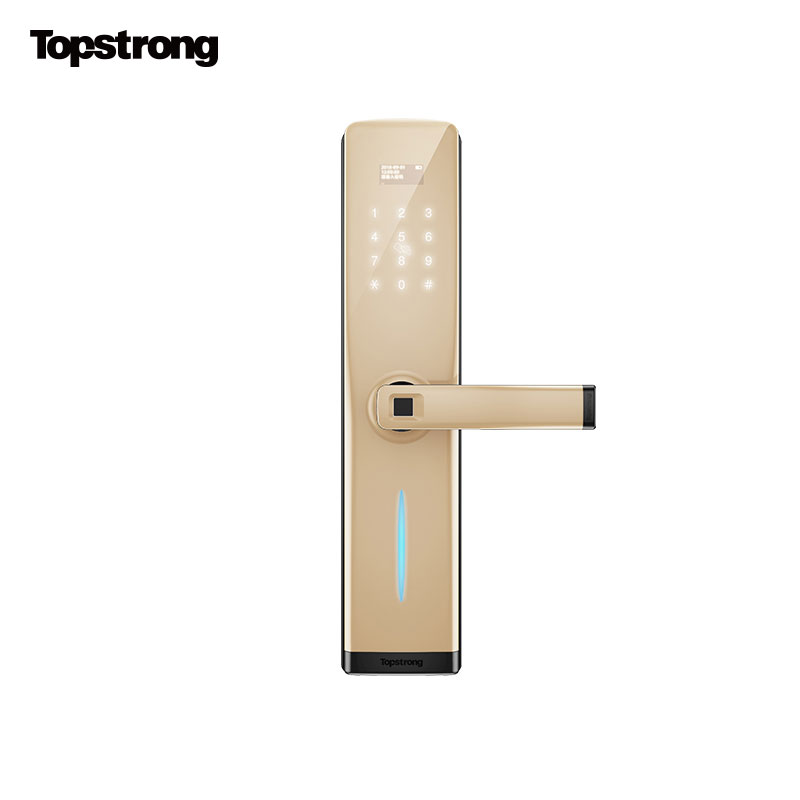

Color: Black/Gold

Unlock: Fingerprint/card/password/key

Lock body: S6851 anti-theft lock body

Way to open the door: Right/Left/Inwards/Outwards

Verification time：≤1s

Verification angle：360°

Static Current: ≤70μA

Dynamic Current: ≤300mA

Data Capacity：300pcs Fingerprint

Finger Reader：Semiconductor Fingerprint sensor

FRR : ≤0.1%

FAR: ≤0.0001%

Card frequency：13.56Mhz

Card compatible type：Mifare-1 s50/s70 compatible card

Working Temperature: -20℃~60℃

Working Humidity: 20%~90%RH

Password length: 6 -10 bit

Low voltage alarm：4.8±0.2V

Lock cylinder：Anti-theft lock cylinder

Door type: Wooden door, security door

Induction time: ≤0.5s

Emergency service：5VDC

Battery type: 6VDC

Key panel: 12 bit touch panel

Door thickness: 38-120mm
